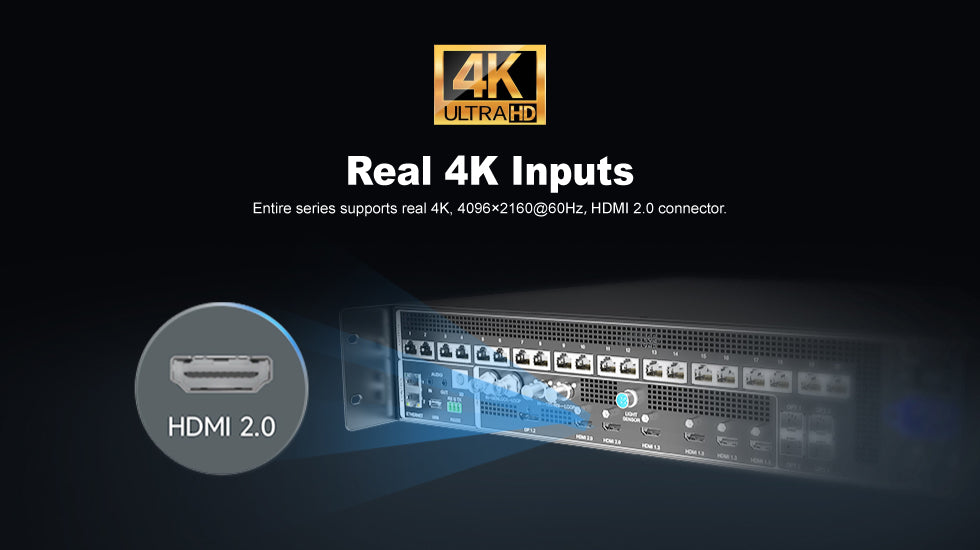

VX Pro Series, NovaStar LED Display Controller, Entire series supports real 4K, 4096×2160@60Hz, HDMI 2.0 connector

VX Pro Series, NovaStar LED Display Controller, Entire series supports real 4K, 4096×2160@60Hz, HDMI 2.0 connector

$1,355.00 USD
$1,355.00 USD
Sale Sold out
Device Model

🚚 Shipping: Usually ready to ship in 5+ days

VX400 Pro Specifications

VX600 Pro Specifications

VX1000 Pro Specifications

VX2000 Pro Specifications


Device Model
VX400 Pro
VX600 Pro
VX1000 Pro

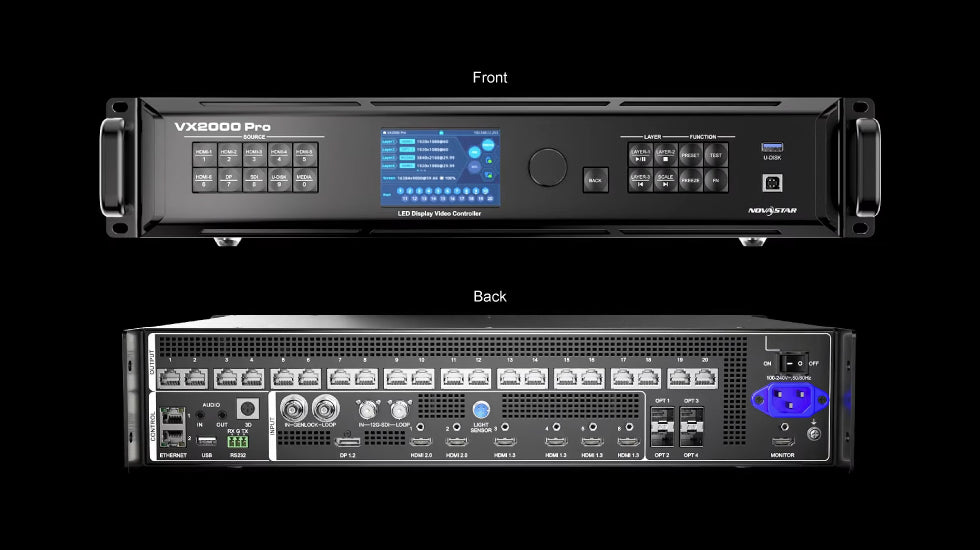

VX2000 Pro
Loading Capacity
2.6 million pixels
3.9 million pixels
6.5 million pixels
13 million pixels
Max Width (pixels)
10240
10240
10240
16384
Max Height (pixels)
8192
8192
8192
8192

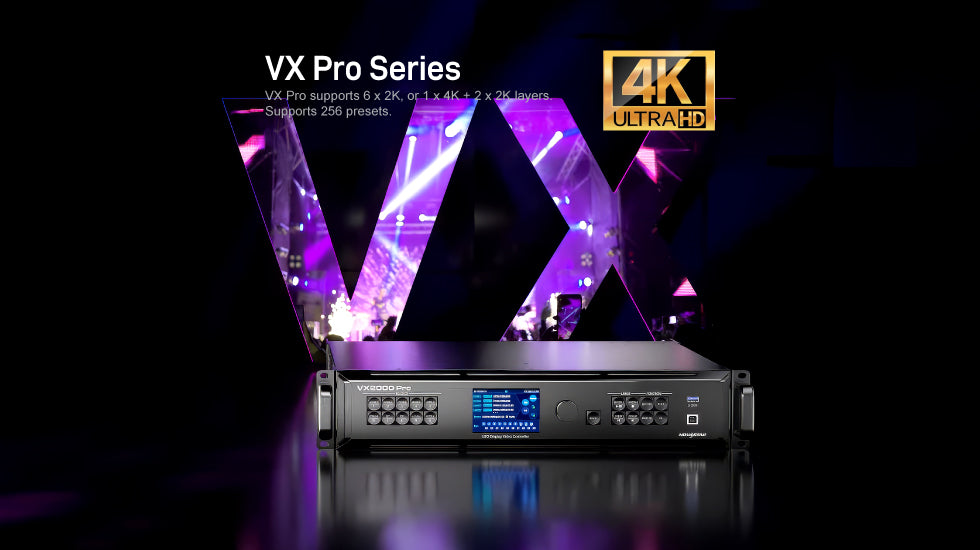

Layers
6 *2K×1K
6 *2K×1K
6 *2K×1K
12 *2K×1K
Input Connectors
1× HDMI 2.0（IN&LOOP）
2× HDMI 1.3
1× 3G-SDI（IN&LOOP）
1× 10G OPT Port（OPT1）

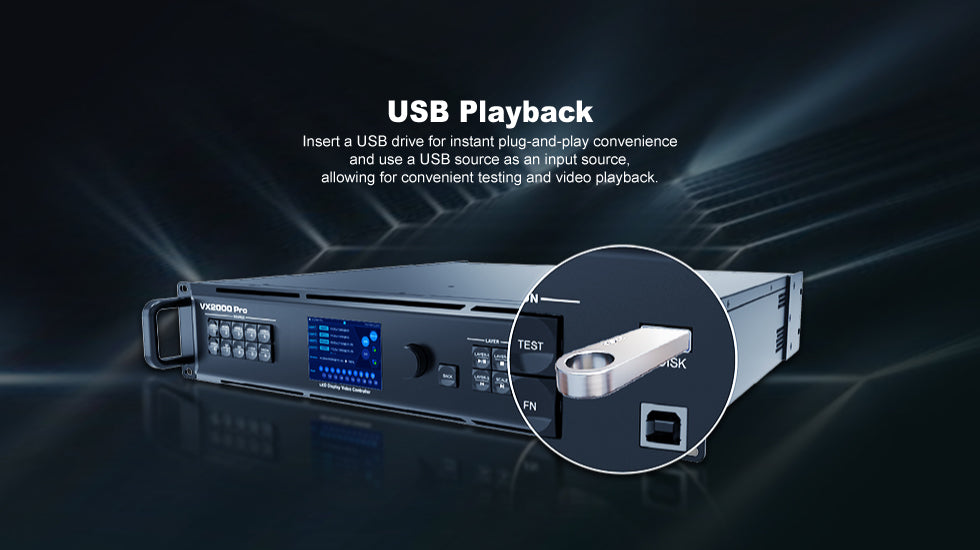

1× USB3.0
1× HDMI 2.0（IN&LOOP）
2× HDMI 1.3
1× 3G-SDI（IN&LOOP）
1× 10G OPT Port（OPT1）
1× USB3.0
1× HDMI 2.0（IN&LOOP）
2× HDMI 1.3
1× 3G-SDI（IN&LOOP）
1× 10G OPT Port（OPT1）
1× USB3.0
1× 12G-SDI(IN&LOOP)
1× DP 1.2
2× HDM 2.0
4× HDMI 1.3
2× OPT
1× USB3.0
Output Connectors
4× Ethernet Ports
1× HDMI1.3
1× HDMI 2.0 LOOP
1× 3G-SDI LOOP
2× OPT
6× Ethernet Ports
1× HDMI1.3
1× HDMI 2.0 LOOP
1× 3G-SDI LOOP
2× OPT
10× Ethernet Ports
1× HDMI1.3
1× HDMI 2.0 LOOP
1× 3G-SDI LOOP
2× OPT
20× Ethernet Ports
1× HDMI1.3
4× OPT
1× 12G-SDI LOOP
4× OPT
Presets
256
256
256
256
Control Connectors
2× Ethernet Port
1× USB
2× Ethernet Port
1× USB
2× Ethernet Port
1× USB
2× Ethernet Port
1× USB
