SPIW5-4, 4-Channel 5 in 1 SPI LED Controller (WiFi+2.4G)

SPIW5-4, 4-Channel 5 in 1 SPI LED Controller (WiFi+2.4G)

$45.00 USD
$45.00 USD
Sale Sold out

🚚 Shipping: Usually ready to ship in 5+ days

Features

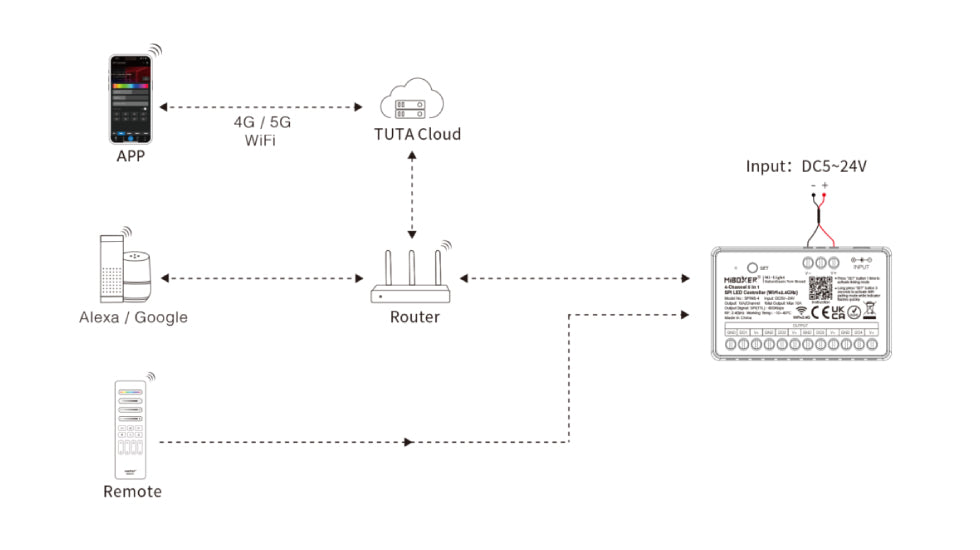

SPIW5-4 5 in 1 SPI WiFi+2.4G controller have 4 channel output, compatible with DC5-24V input, specially designed for SPI LED srtrip, support WiFi+2.4GHz wireless technology, working with Tuya smart App to set up the feature of LED strip. It can change dynmaic color, brightness, select dynamic mode and have music function.

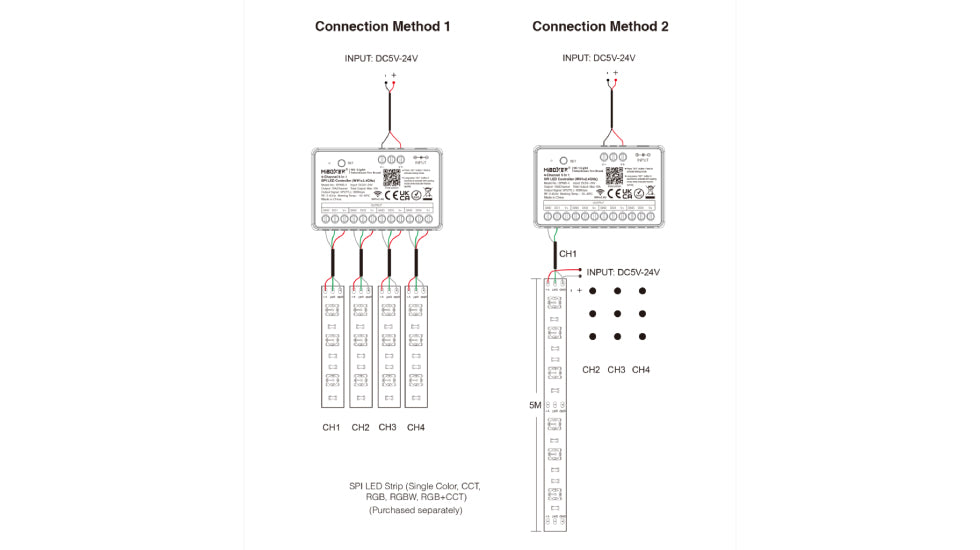

  • 4 individual output and control 4 zone SPI led strip independently
  • Pixel Dots: Max 1024
  • Output Signal :SPI(TTL) 800Kbs
  • Compatible with single color/CCT/ RGB/ RGBW/ RGB+CCT SPI LED strip light
  • Color, pixel dots, speed, static and dynamic mode, music mode are adjustable
  • Dynamic mode : 28 kinds of white color, 80 kinds of colorful modes,
  • support to change color, brightness, deepth, speed of all modes
  • 4 kinds of music mode, built in internal microphone and smart phone microphone catch signal
  • Freely switch dynamic or static or music mode

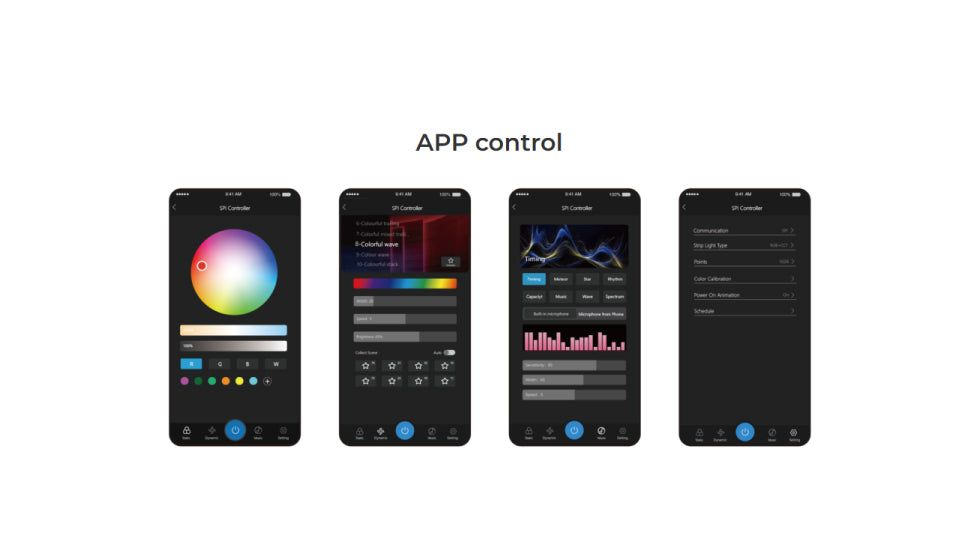

  • Setting boot animation via Tuya Smart App
  • Have DND mode and usual used in power failure area to save power.

Compatible chips( controller don't need to set chip types)

TM1809, TM1804, TM1812, SK6813, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815，SK6812(RGBW), WS2813(RGBW), WS2814(RGBW)



Product Name: 4-Channel 5 in 1 SPI LED Controller(WiFi+2.4G)
Model No.: SPIW5-4
Input Voltage: DC5V~24V
Output Current: Max 10A
Output signal: SPI(TTL) 800Kbps (Max 1024 Pixel)
Standby current: 20mA
Protocol: WiFi + 2.4GHz RF
Control Distance: RF: 30m
IP Rate: IP20
Working Temperature: -10~40°C

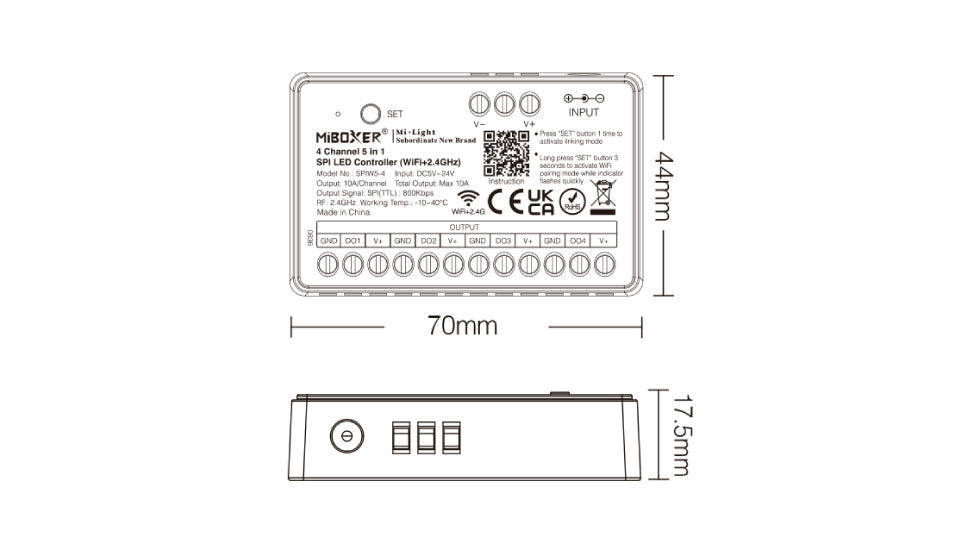

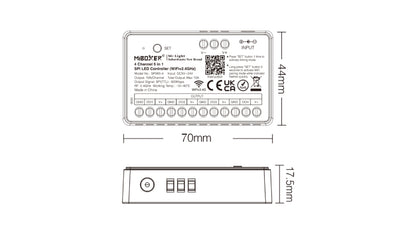

Dimension: 70*44*17.5mm
EMC Standard (EMC): ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Safety Standard (LVD): EN 62368-1; 2020+A11;2020
Radio Equipment (RED): ETSI EN 300 440 V2.2.1
Certification: CE, EMC, LVD, RED
Warranty: 5 Years
