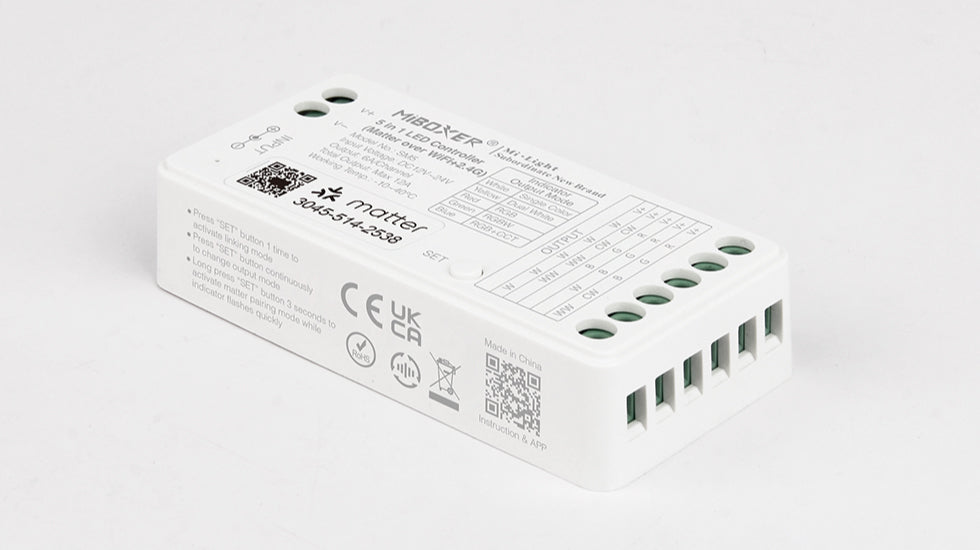

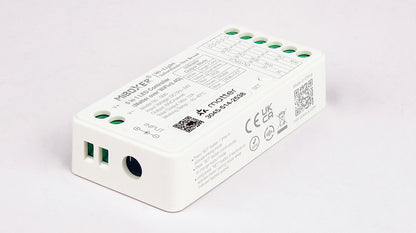

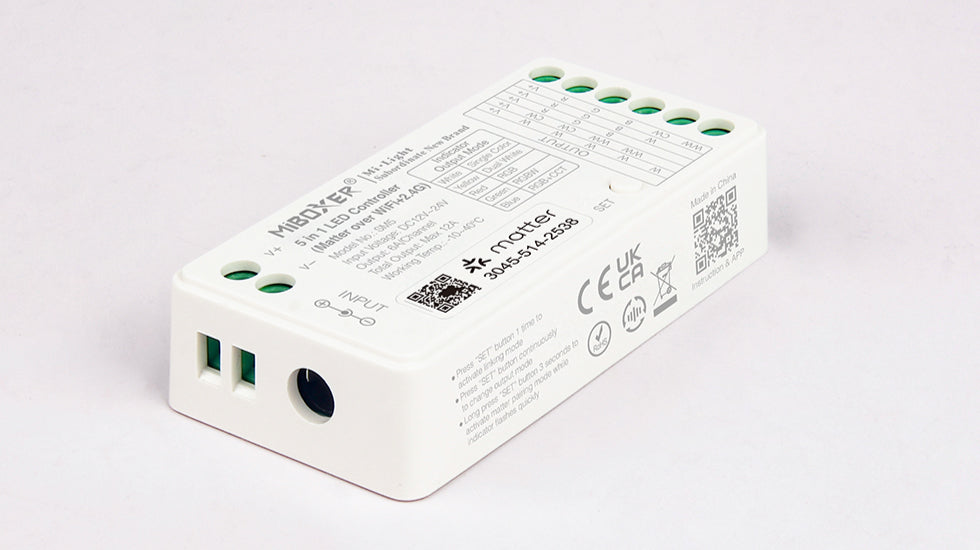

SM5, 5 in 1 Controller (Matter Over WiFi+2.4GHz)
SM5, 5 in 1 Controller (Matter Over WiFi+2.4GHz)
Couldn't load pickup availability
🚚 Shipping: Usually ready to ship in 5+ days
Features

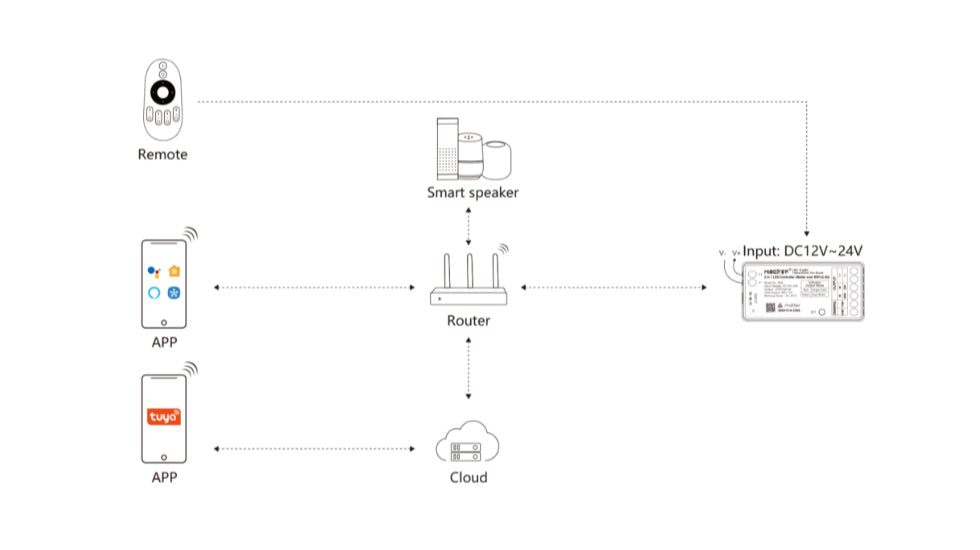

• Certified Matter Over Wifi, Matter standard protocol, support to Collaborate with multi platforms
• Wide compatibility, collaborate with products from different brands which comply with Matter ecosystem
Parameters
• Simple configuration, easily pairing via QR code
• Voice control, compatible with Siri, Google Assistant, Alexa portable control

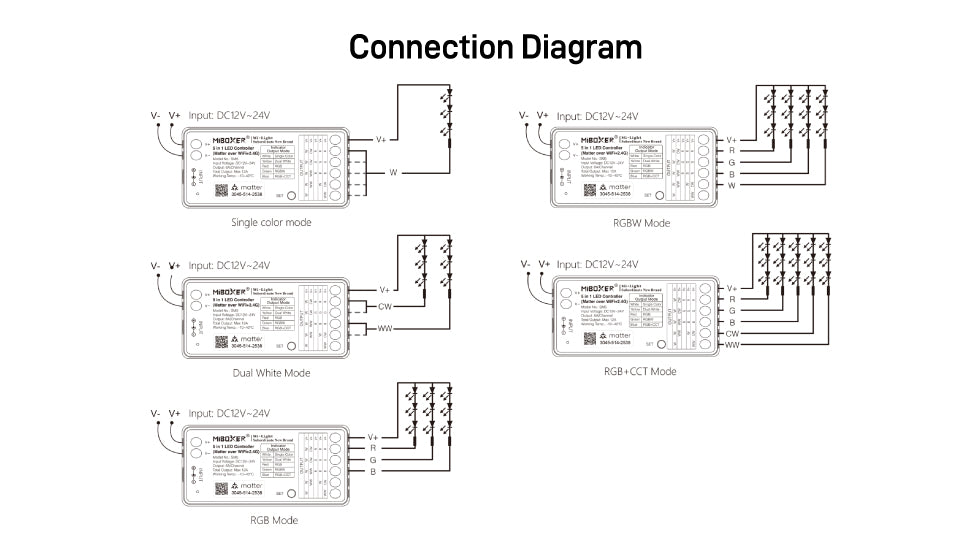

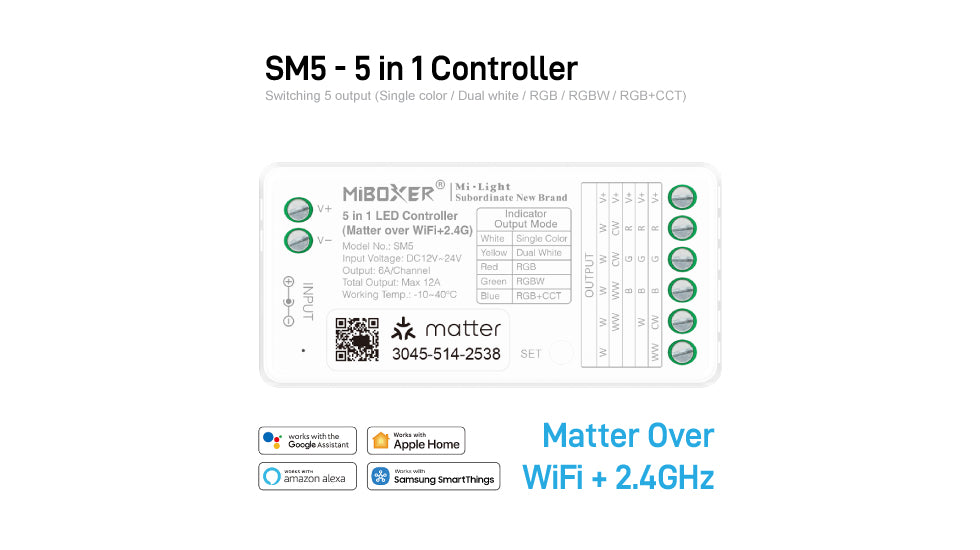

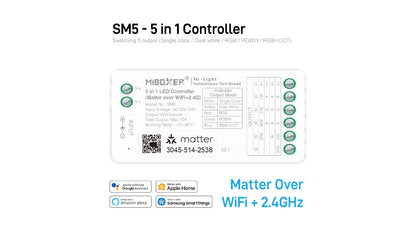

• 5 in 1 LED Controller, Single Color/ CCT/ RGB/ RGBW/ RGBCCT
• Support to set up forecast scenes and select scenes based on different lighting requirements
• Max work with 12pcs remote control ( distance 30m)
• Built-in 18 dynamic modes like jumping,fading( only control via remote)
• Auto transmitting: transmit signal to another one automatically and extend countless distance
• Auto synchronization:same dynamic mode can synchronize together
• Support DND mode, usually used in power failure area to save power
• Support multi platforms like Apple Home Kit, Amazon Alexa, Google Home, Smart Things, Tuya Smart
| Product Name | 5 in 1 Controller (Matter Over WiFi+2.4GHz) |
| Model No. | SM5 |
| Input Voltage | DC12-24V |
| Output Current | 6A/ Single channel |
| Total Output | Max 12A |
| Protocol | WiFi + 2.4G RF |
| WiFi Standard | IEEE 802.11b/g/n 2.4GHz |
| RF Control Distance | 30m |
| IP Rate | IP20 |
| Working Temperature | -10~40°C |
| EMC Standard (EMC) | ETSI EN301 489-1 v 2.2.3 (2019-11) ETSI EN301 489-3 v 2.3.2 (2023-01) |
| Safety Standard (LVD) | EN 61347-1 : 2015+A1 : 2021 EN 61347-2-11 : 2001+A1 : 2019 |
| Radio Equipment (RED) | ETSI EN 300 440 V2.2.1 |
| Certification | CE, EMC, RED |
