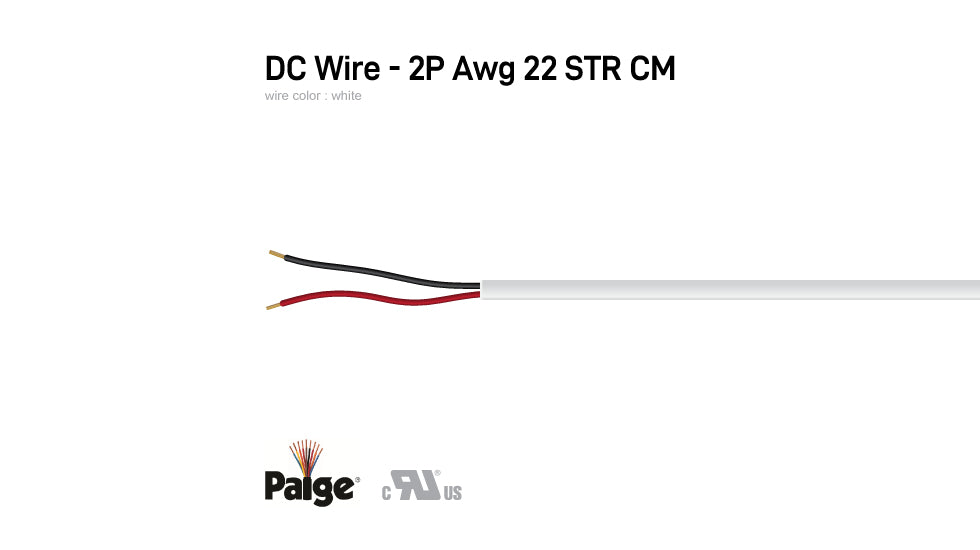

PAIGE 22/2C STR CM WHITE

PAIGE 22/2C STR CM WHITE

Regular price $80.00 USD
Regular price $114.80 USD Sale price $80.00 USD
Sale Sold out
Order Type

SCOPE
This cable consists of 2 conductors 22 AWG stranded bare copper; color-coded PVC insulation; overall color-coded PVC jacket. Type CM /UL Standard 444 / NEC Article 800 / UL 1581

CONDUCTOR
• Material: Bare Copper
• Size: 22 AWG
• Construction: 7 × 30

INSULATION
• Material: PVC
• Wall Thickness: .008 inch nom.
• Color code: 1-Black / 2-Red

JACKET
• Material: PVC
• Wall Thickness: .020 inch nom.
• OD: .130 inch nom.
• Color: White
• Ripcord under jacket
• Markings: PAIGE 1U22022B1 22/2C STR CM (****) 75° C (***) ROHS COMPLIANT (**)(*)

ELECTRICAL PROPERTIES
• Temperature: −20°C to 75°C
• Voltage: 300 Volt
• Capacitance: 25.7 pF/ft. nom.
• Impedance: 75 Ohms
• Velocity of Propagation: 55%
• DC Resistance: 17.5 Ohms/M’ @ 68°C
