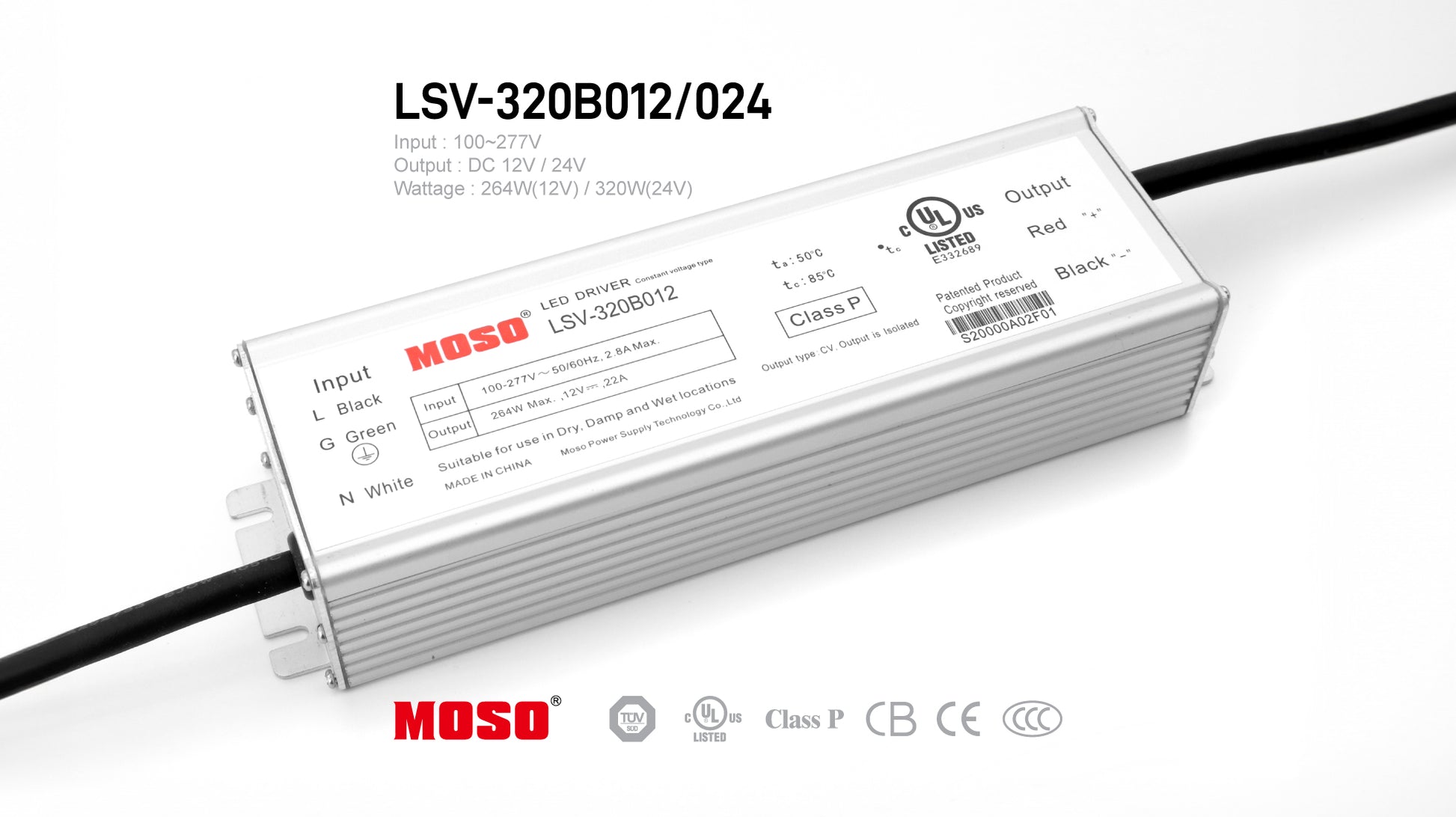

MOSO LSV-320B, Input AC100~277V, 320W Power Supply for Outdoor IP67

MOSO LSV-320B, Input AC100~277V, 320W Power Supply for Outdoor IP67

Regular price $90.00 USD
Regular price $0.00 USD Sale price $90.00 USD
Sale Sold out
Output Voltage

• Universal input voltage:100~277Vac;
• Constant voltage output; 264W(12V), 320W(24V)
• High power factor >0.96(230Vac& full load);
• Overall protection: Short circuit / Over temperature / Over voltage / Over load;
• Surge immunity: line-line 5KV, line-earth 10KV;
• IP67, glue potted, suitable for dry / wet / damp locations;
• 5 years warranty.

Over Temperature Protection
When the Tc is over 90°C, the driver shuts off automatically and enters protection status.

Short Circuit Protection
The input power shall decrease when the output rail short, the power supply shall not be damaged.

Over Current Protection
The product will enter hiccup status when 1.1-1.5 maximum load current applied to the output,
and the product shall be self-recovery when the fault condition is removed.

Over Voltage Protection
When the output voltage is over 1.1-1.3 Rated Load Voltage, the driver shuts off automatically and enters protection, the driver will work after fault condition removed and AC input reapply.
