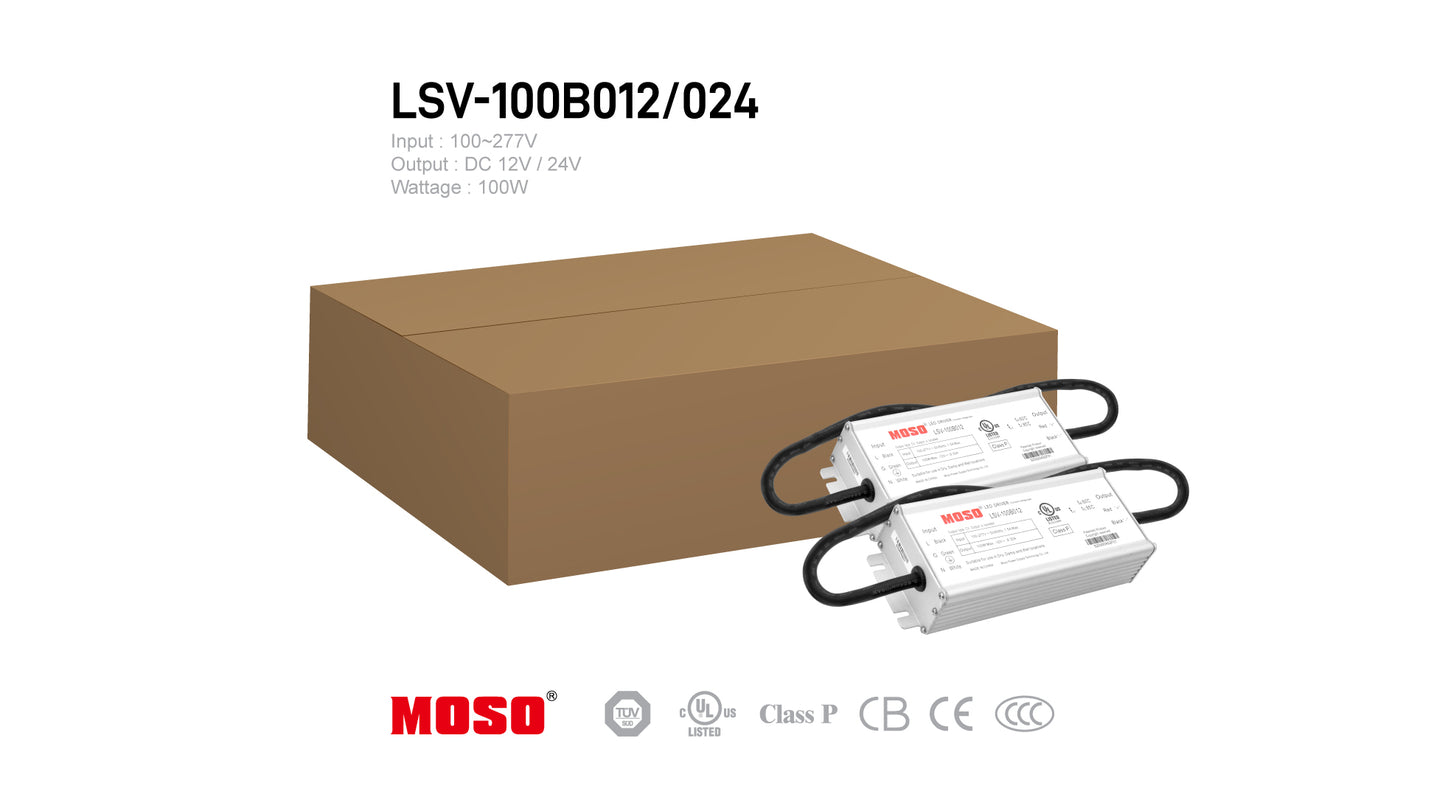

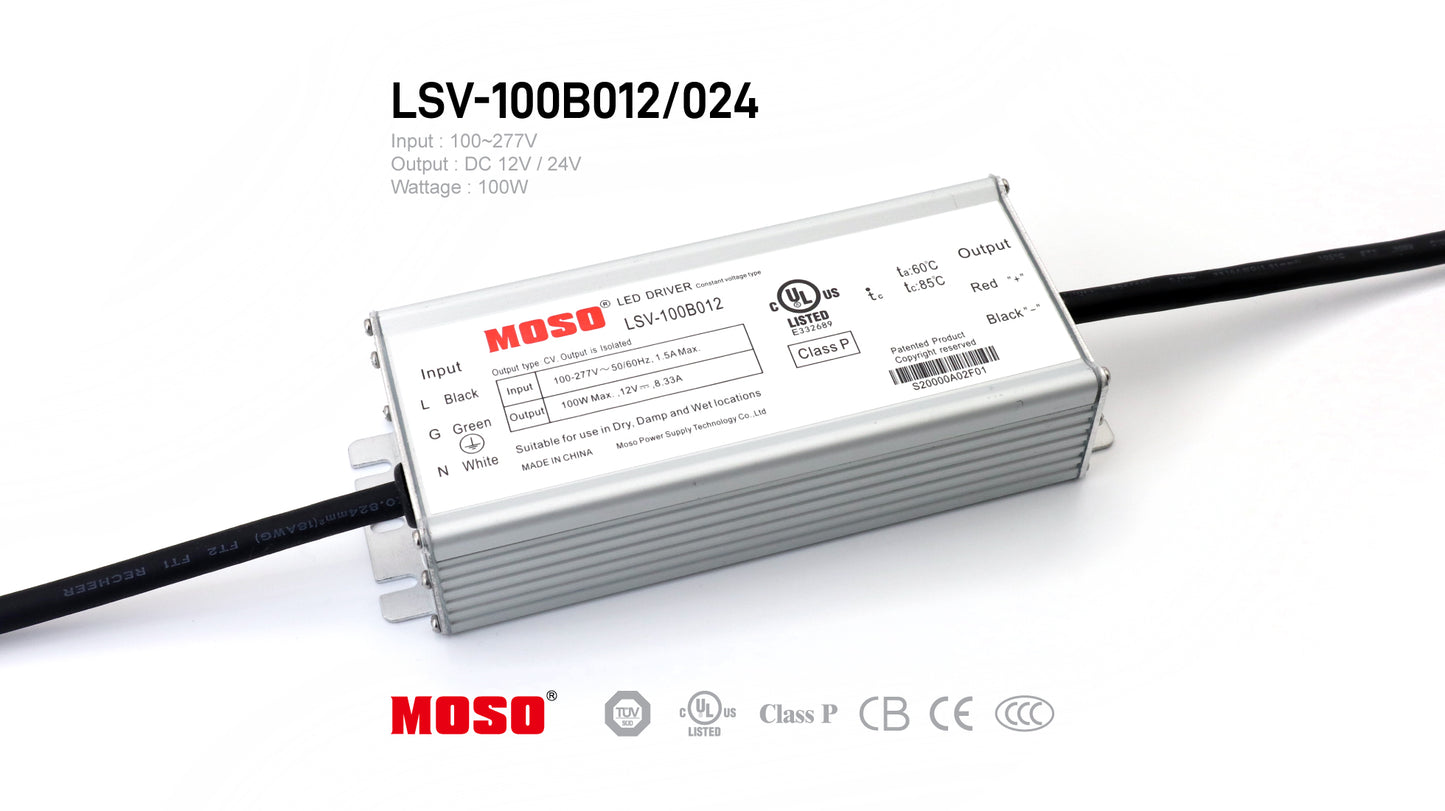

MOSO LSV-100B, Input AC100~277V, 100W Power Supply for Outdoor IP67, 10 pcs
MOSO LSV-100B, Input AC100~277V, 100W Power Supply for Outdoor IP67, 10 pcs
Couldn't load pickup availability
• Constant voltage output;
• High power factor >0.96(230Vac& full load);
• Universal input voltage 100~277Vac;
• Overall protection: Short circuit / Over temperature / Over voltage / Over load;
• Surge immunity: line-line 5KV, line-earth 10KV;
• IP67, glue potted, suitable for dry / wet / damp locations;
• Ambient temperature:-40C˚ ~ 60C˚
Over Temperature Protection : When the Tc is over 90°C, the driver shuts off automatically and enters protection status.
Short Circuit Protection : The input power shall decrease when the output rail short, the power supply shall not be damaged.
Over Current Protection : The product will enter hiccup status when 1.1-1.5 maximum load current applied to the output,
and the product shall be self-recovery when the fault condition is removed.
Over Voltage Protection : When the output voltage is over 1.1-1.3 Rated Load Voltage, the driver shuts off automatically
and enters protection, the driver will work after fault condition removed and AC input reapply.
