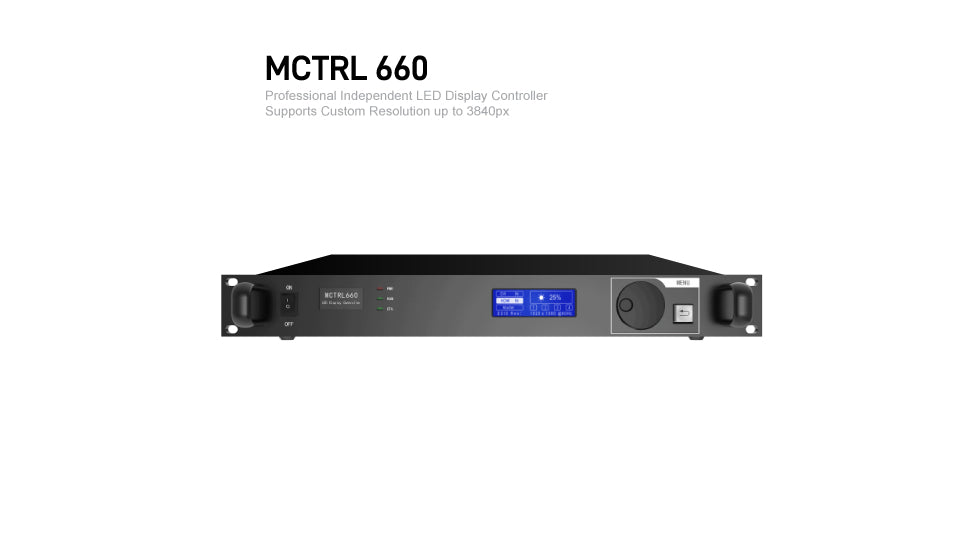

NovaStar MCTRL660 LED Display Controller

The MCTRL660 is a professional LED display controller developed by NovaStar, designed to deliver stable performance and high-quality image processing for LED display systems. With a single-unit loading capacity of 1920×1200@60Hz, the MCTRL660 supports both rental and fixed LED installations including stage events, broadcast studios, monitoring centers, and sports arenas.

Featuring true hot backup technology, the controller ensures continuous operation without flickering or screen blackout. The device also allows one-button configuration upload, enabling quick and efficient screen setup.

Equipped with HDMI and DVI inputs, multiple cascading capabilities, and advanced grayscale processing, the MCTRL660 provides reliable signal transmission and superior image quality for demanding LED display environments.

Key Features

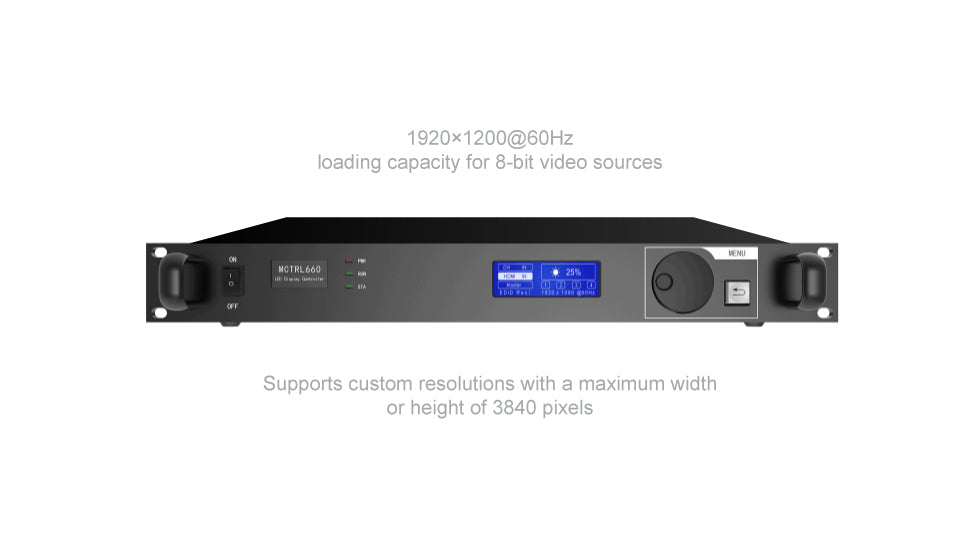

• 1920×1200@60Hz loading capacity for 8-bit video sources
• 1440×900@60Hz loading capacity for 12-bit video sources
• 1× HDMI input & 1× DVI input
• HDMI/DVI loop output for cascading or monitoring
• 4× Gigabit Ethernet outputs

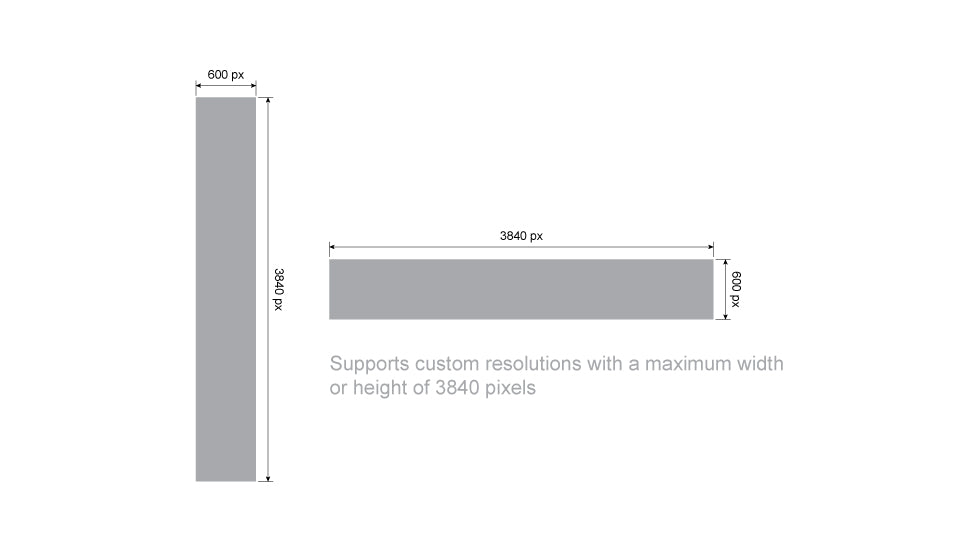

• Supports custom resolutions up to 3840 pixels (horizontal or vertical)
• Compatible with multiple signal formats: RGB, YCrCb 4:2:2, YCrCb 4:4:4
• True hot backup with no flickering or blackout
• 18-bit grayscale processing for enhanced image depth
• Manual brightness adjustment for quick screen control
• Quick screen configuration without a computer
• Smart screen setup enabling configuration within 30 seconds
• Powered by NovaStar G4 image processing engine for stable and high-quality display
• Supports multiple video formats

Certifications

CE · RoHS · FCC · UL · EAC
