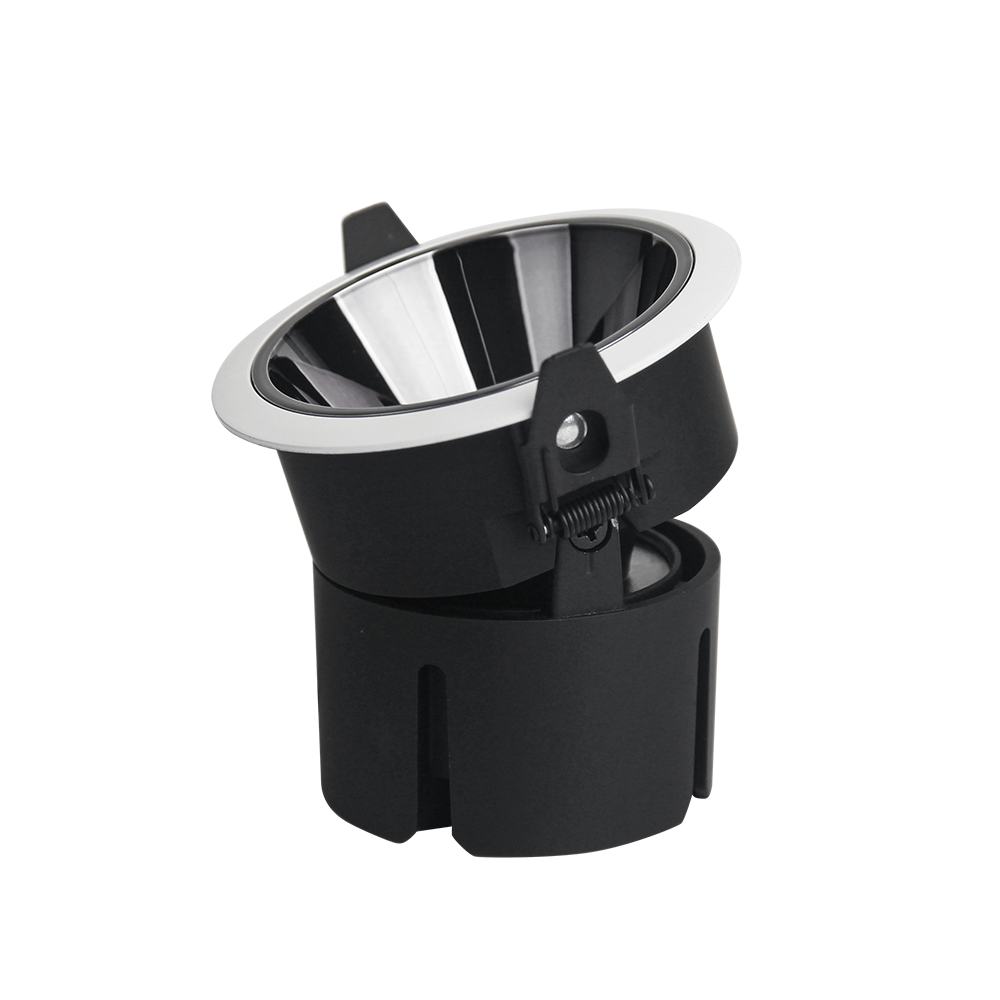

• High CRI COB LED Chip • Color temperature and brightness adjustable • Product follow zigbee 3.0 standard protocol • Zigbee Contrl distance: 50m (open area) • Compatible with Mi-Light / MiBoxer 2.4GHz series remote • 2.4G RF Remote Control Distance: 30m • The angle of the lamp body can be rotated
Item
Specification
Product Name
Deep Anti-Glare LED CCT Downlight (Zigbee 3.0 + 2.4G)
Model No.
FUT075ZR
Input Voltage
AC100~240V 50/60Hz
Power
9W
Power Factor (PF)
＞0.5
CRI
＞90
Color Temperature
2700~6500K
Luminous Flux
700LM
Luminous Efficiency
78LM/W
Beam Angle
24°
Protocol
Zigbee 3.0 + 2.4GHz RF
Control Distance
Zigbee: 50M (open area) / 2.4G RF: 30M
IP Rate
IP20 (Indoor use)
Working Temperature
-10~40℃

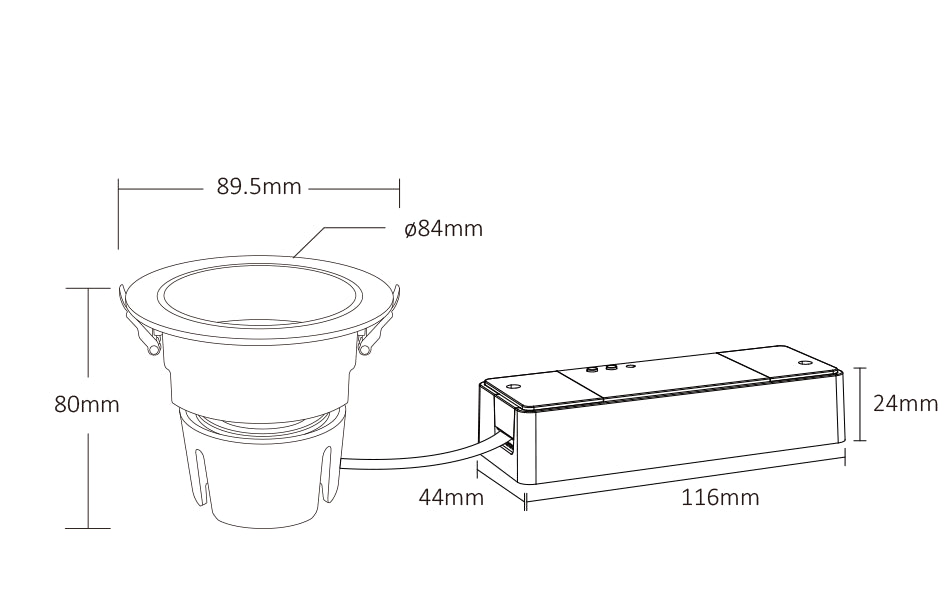

Hole Size
75mm
Dimming Grayscale
4096 Levels
Dimming Range
0.1% - 100%
Dimming Curve
Logarithmic
EMC Standard (EMC)
ETSI EN 301 489-1 v2.2.3 (2019-11) ETSI EN 301 489-3 v2.3.2 (2023-01)
Safety Standard (LVD)
EN IEC 60598-1:2021+A11:2022 EN 60598-2-2:2012 EN IEC 62031:2020+A11:2021 EN 62493:2015+A1:2022
