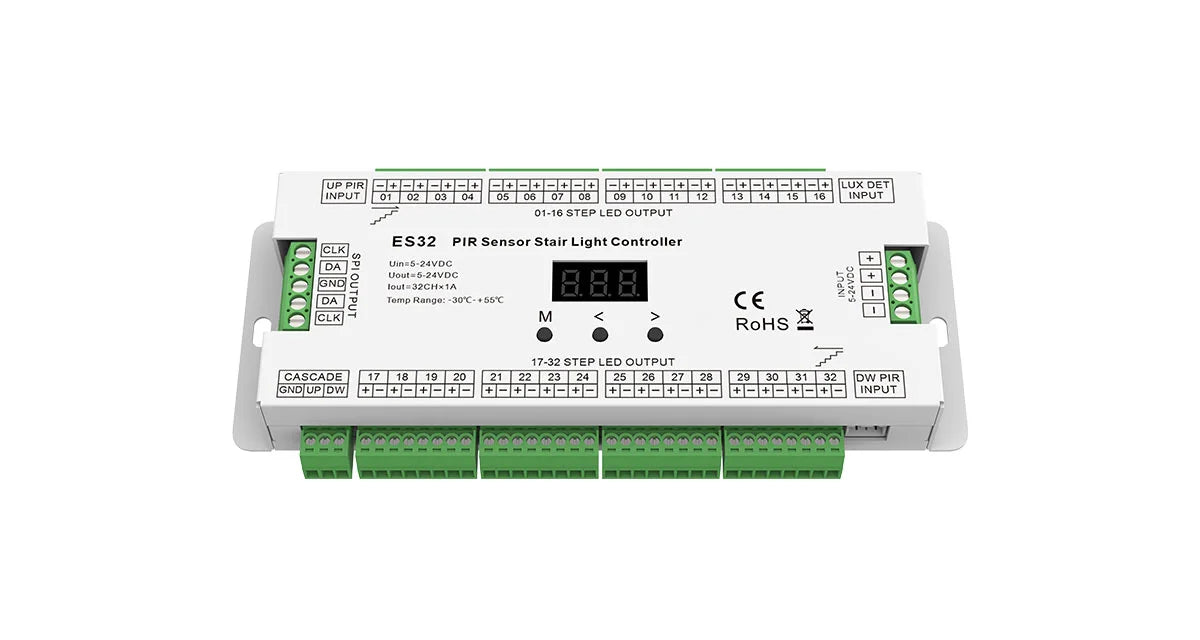

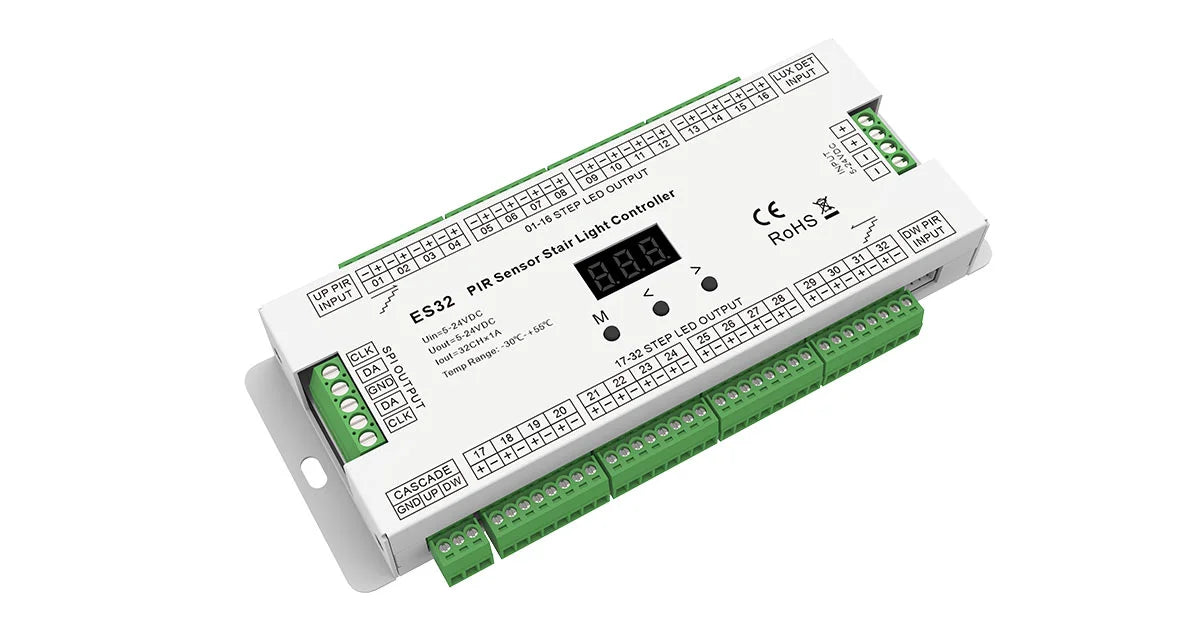

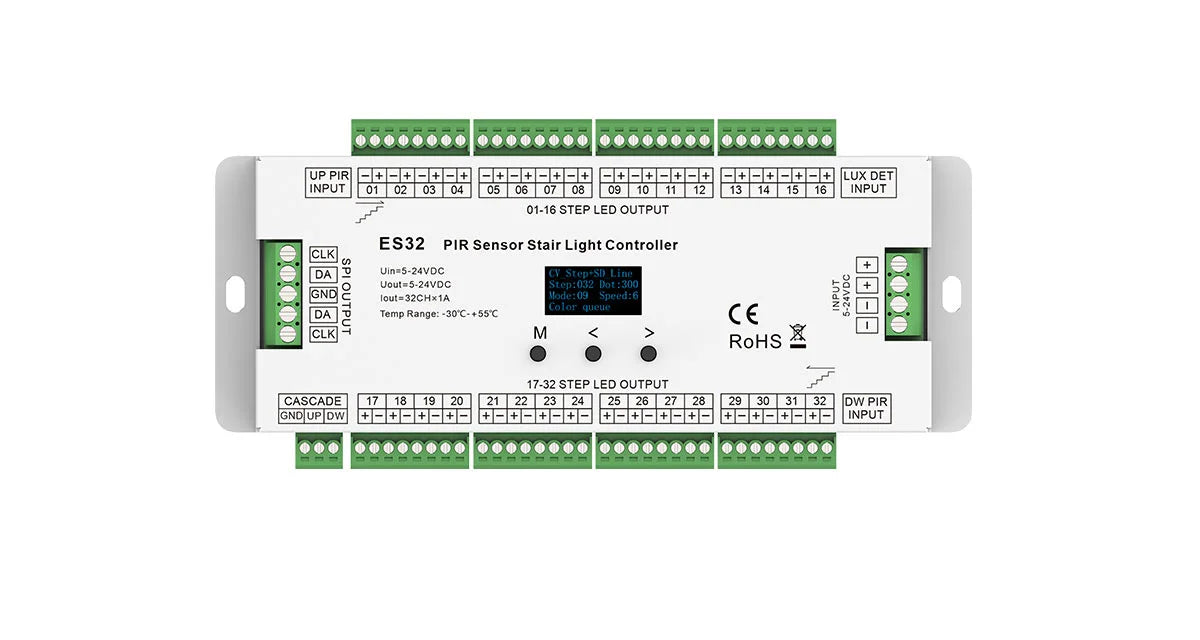

5-24VDC 32CH*1A PIR Sensor Stair Light Controller - SD-ES320
5-24VDC 32CH*1A PIR Sensor Stair Light Controller - SD-ES320
Couldn't load pickup availability
• Multifunctional PIR sensor stair light controller features daylight sensor.
• 32 channels constant voltage output drive low voltage LED strip, Max. 1A current per channel.
• 2 groups SPI(TTL) signal output, drive 27 kinds IC digital RGB LED strip,
IC type and R/G/B order can be set.
Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903,
UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811,
WS2812, TM1829, TM1914A, GW6205, GS8206,GS8208,LPD6803,
LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801,
WS2803, P9813, SK9822.
• Easy operation with OLED display and 3 buttons.
• four work light modes selectable.
• Two stair light controllers can cascade.
• Built-in multiple color mode, speed and brightness 1-8 grade adjustable.
• Push switch can be used as induction signal input.
• With fast self-testing function.
• Any damaged LED channel in 32 channels can be set disable.
Product Guide : SD-ES320
