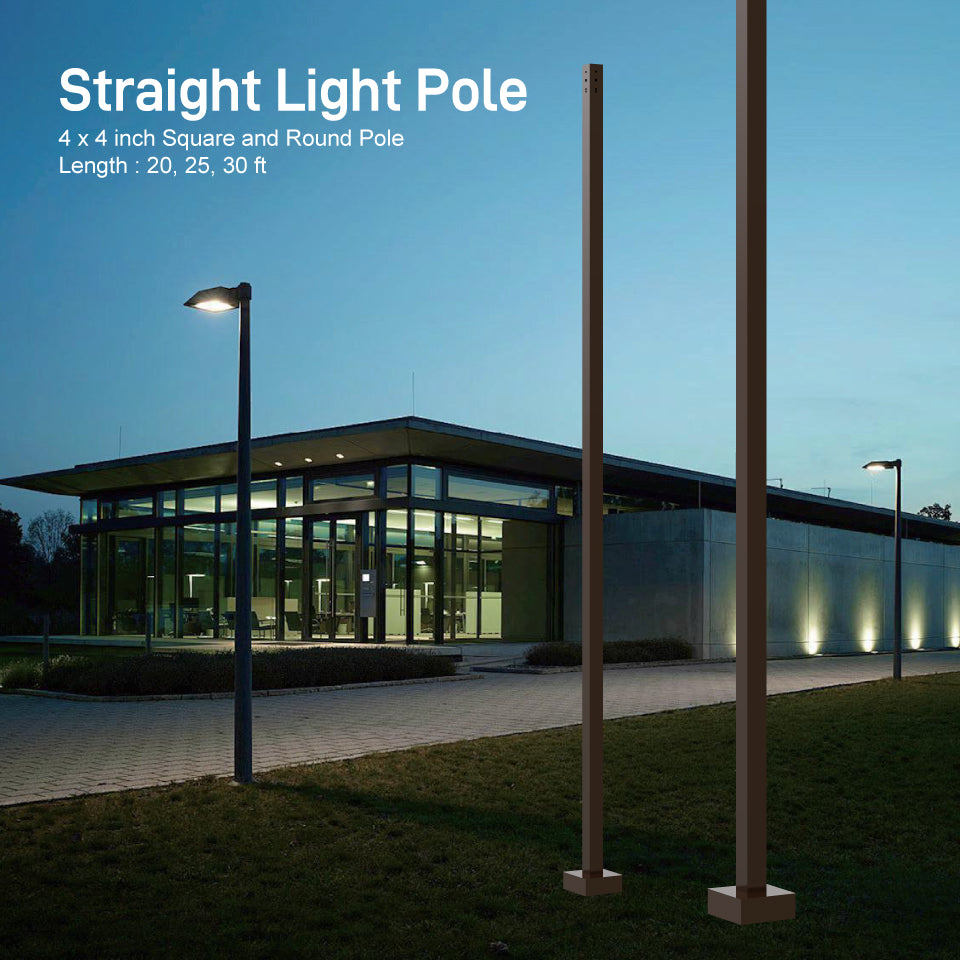

4 x 4 inch Square and Round Pole - 20, 25, 30ft
4 x 4 inch Square and Round Pole - 20, 25, 30ft
This product requires freight shipping. Costs vary by destination.
Please request a quote for accurate pricing including delivery.
NES Light Series Straight Steel Poles
The NES Light Series Straight Steel Poles are built from high-strength steel tube and are available side drilled for arm-mounted area lighting luminaires or with tenon mounts for flood and post-top luminaires. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transit and airports, office buildings, and medical facilities. Mounting heights of 10 to 30 feet can be used based on the selected luminaire application.
FEATURES
FINISH:
Textured architectural bronze powder-coat finish, baked to ensure maximum paint adhesion, hardness, and durability.

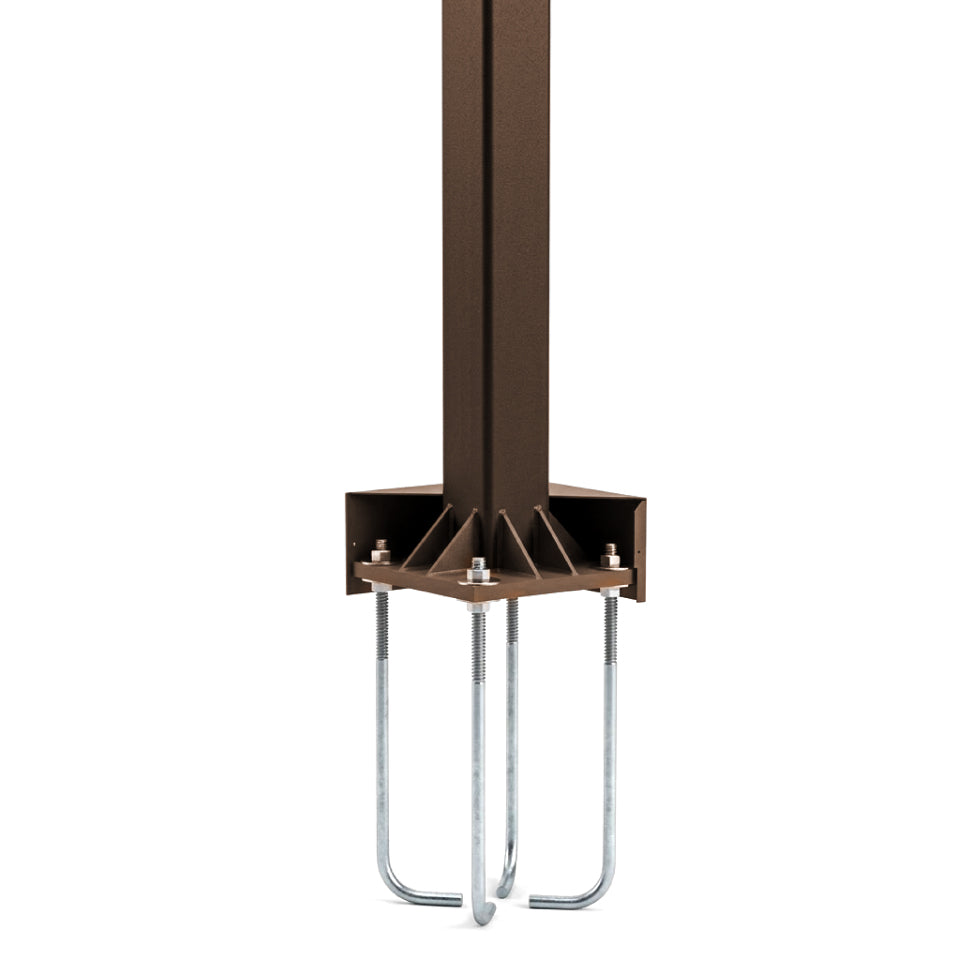

ANCHOR BOLTS:
Anchor bolts are included, sized based on pole data charts for the selected pole size.

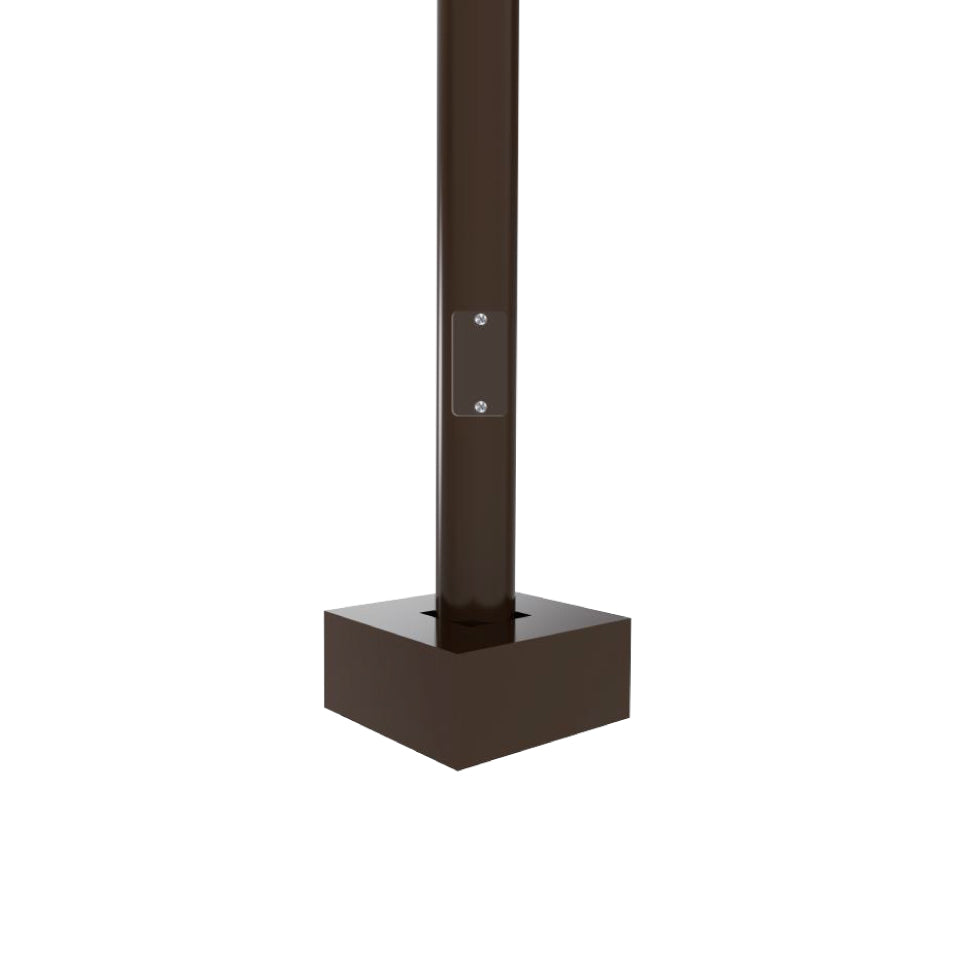

HAND HOLE:
Cast iron reinforced hand hole and cover with ground screw.
BASE COVER:
Poles are provided with a two-piece formed steel base cover that is easily assembled and fitted over the pole base.
POLE LENGTH:
Poles are available in standard lengths as shown in the order matrix.
SURFACE TREATMENT:
Hot-dip galvanizing.
SPECIFICATIONS:
Conforms to ASTM-A 500 Grade B:
Minimum Yield Strength of 46,000 PSI.
