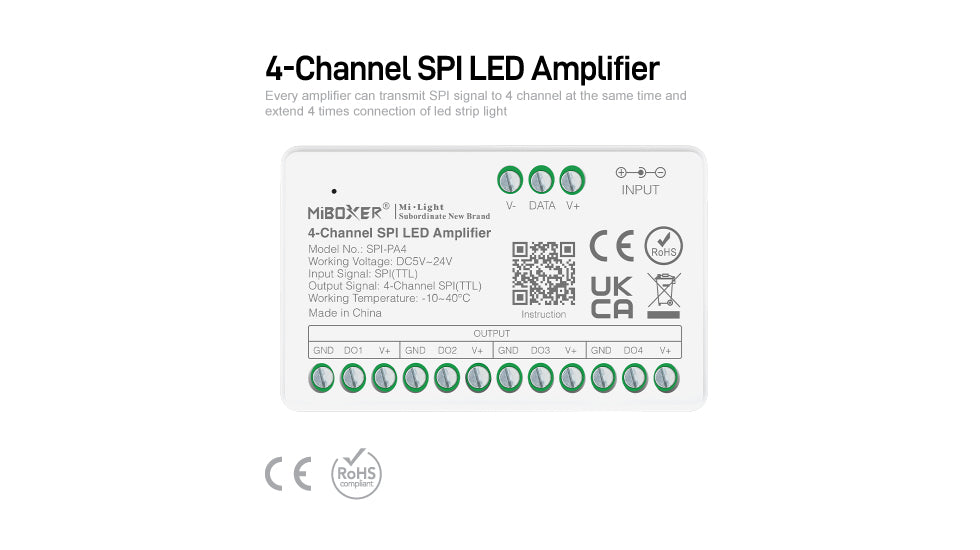

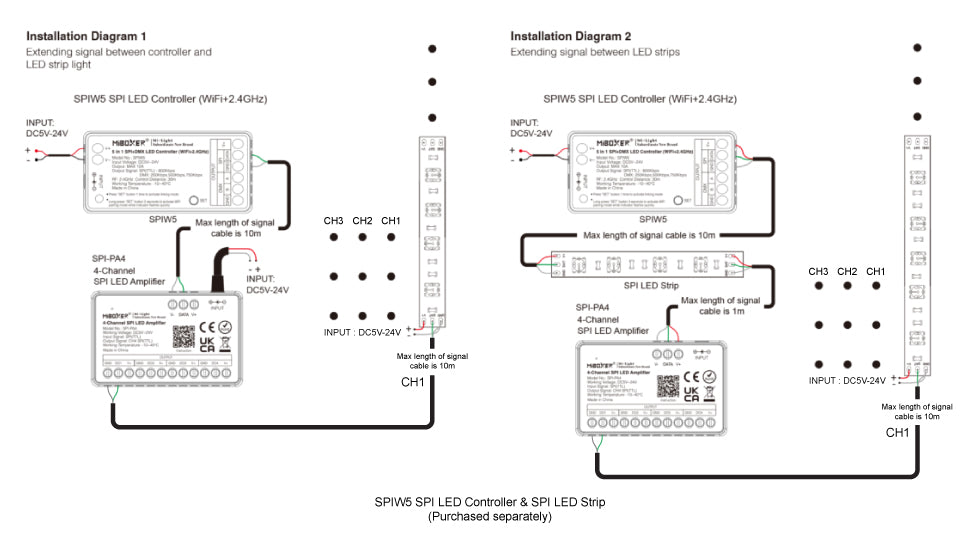

SPI-PA4, synchronous SPI signal, 4-channel SPI signal output, compatible with DC5~24V input, when used with SPI controller, it can amplify the signal / extend the signal line
Every amplifier can transmit SPI signal to 4 channel at the same time and extend 4 times connection of led strip light
It can transmit signal synchronously from master controller completely
Compatible with full range SPI LED controller series on the market
Main application are high-power, wide range and synchronization area
Product Name:
4-Channel SPI LED Amplifier
Model No.:
SPI-PA4
Working Voltage:
DC5V~24V
Input Signal:
SPI(TTL)
Output signal:
4-Channel SPI(TTL)
IP Rate:
IP20
Working Temperature:
-10~40°C

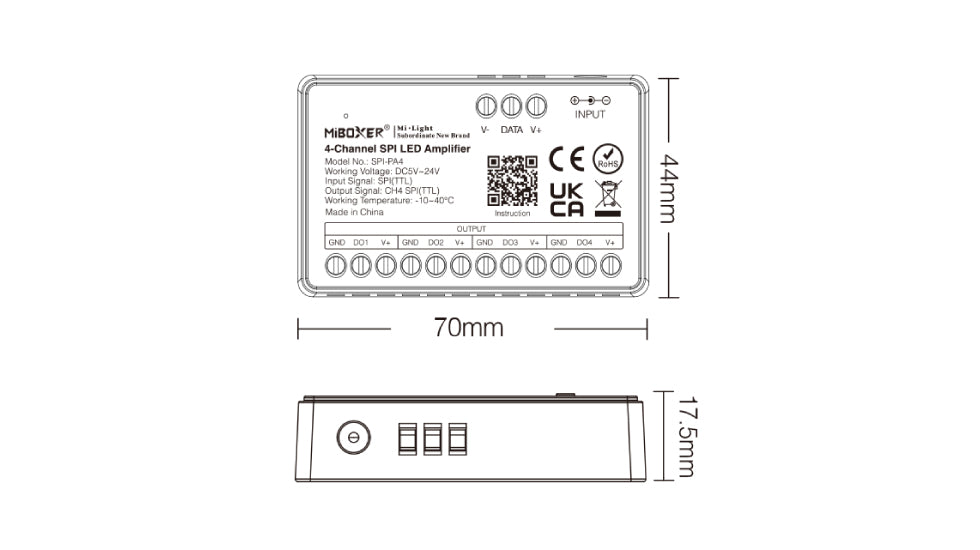

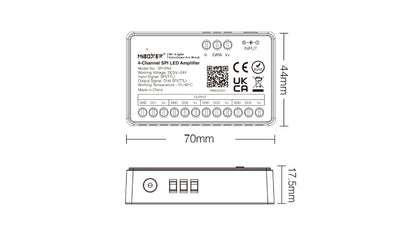

Dimension:
74.5*36*17mm
EMC Standard (EMC):
ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
